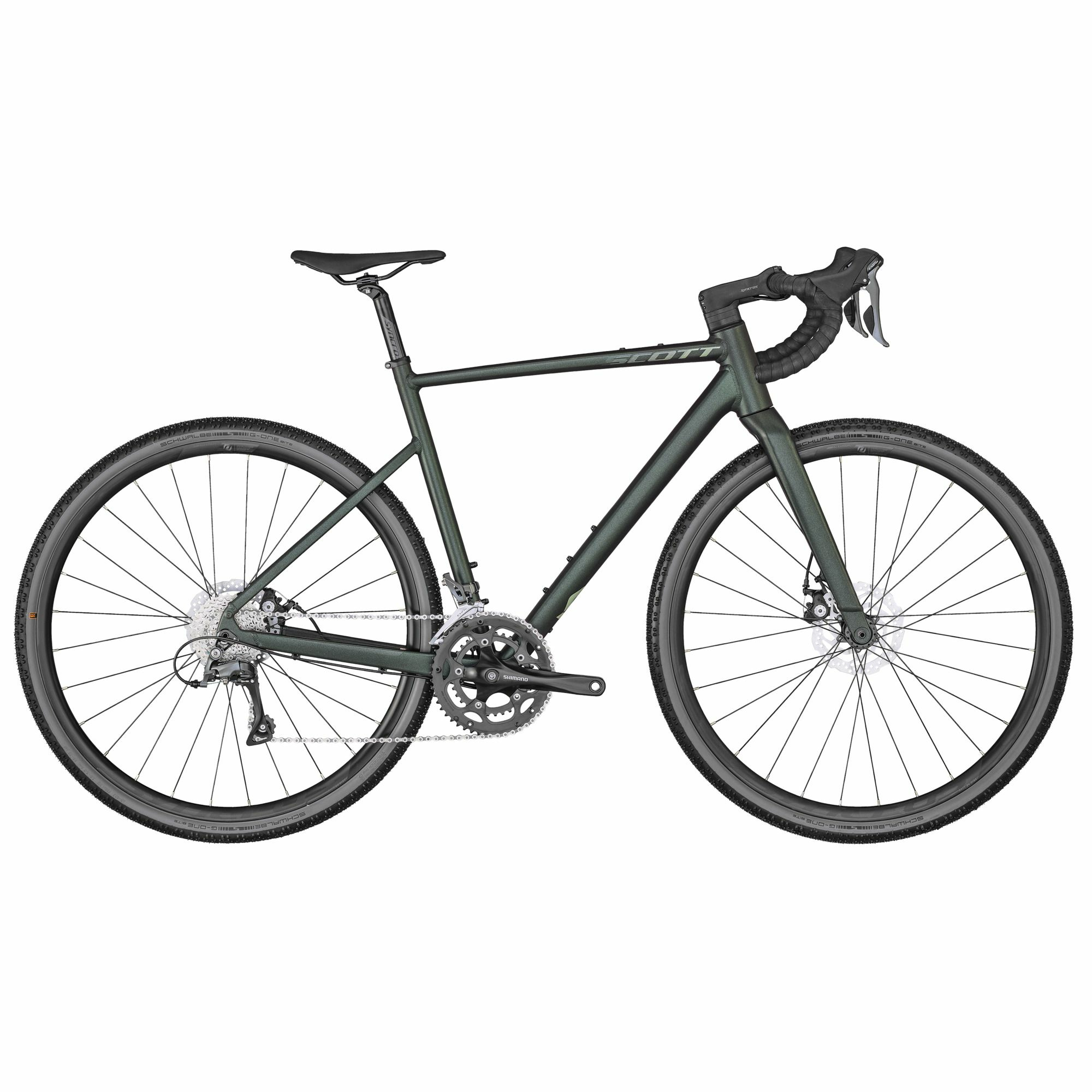

Scott Speedster Gravel 50
$1,699.00
Details
The SCOTT Speedster Gravel 50 is your one stop shop for when the path gets less traveled. Comfortable geometry for all-day rides, room for big tires and fully internal cable routing make this a great option for those looking to take it off road!
Please note that bike specifications are subject to change without prior notice
- Speedster Gravel Disc Alloy Frame
- Shimano Claris Disc 16 Speed
- Schwalbe G-One Bite Tires
| XXS/47 | XS/49 | S/52 | M/54 | L/56 | XL/58 | XXL/61 | ||
|---|---|---|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE | 70.0 ° | 70.0 ° | 70.0 ° | 71.0 ° | 71.0 ° | 71.0 ° | 71.0 ° |
| B | HEAD TUBE LENGTH | 93.0 MM | 103.0 MM | 123.0 MM | 143.0 MM | 163.0 MM | 183.0 MM | 203.0 MM |
| C | TOP TUBE HORIZONTAL | 512.3 MM | 523.0 MM | 536.5 MM | 556.5 MM | 571.2 MM | 581.2 MM | 594.2 MM |
| D | STANDOVER HEIGHT | 747.0 MM | 762.0 MM | 786.0 MM | 806.0 MM | 825.0 MM | 844.0 MM | 869.0 MM |
| E | BB OFFSET | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM | -71.0 MM |
| F | BB HEIGHT | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM | 283.0 MM |
| G | WHEEL BASE | 1,019.5 MM | 1,026.9 MM | 1,037.7 MM | 1,044.9 MM | 1,056.4 MM | 1,067.0 MM | 1,071.3 MM |
| H | BB CENTER TO TOPTUBE CENTER | 430.0 MM | 450.0 MM | 480.0 MM | 500.0 MM | 520.0 MM | 540.0 MM | 570.0 MM |
| I | BB CENTER TO TOP OF SEATTUBE | 470.0 MM | 490.0 MM | 520.0 MM | 540.0 MM | 560.0 MM | 580.0 MM | 610.0 MM |
| J | SEAT ANGLE | 75.0 ° | 74.5 ° | 74.0 ° | 73.0 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| K | CHAINSTAY | 435.0 MM | 435.0 MM | 435.0 MM | 439.0 MM | 439.0 MM | 439.0 MM | 439.0 MM |
| L | REACH | 374.0 MM | 378.0 MM | 382.0 MM | 387.0 MM | 392.0 MM | 396.0 MM | 403.0 MM |
| M | STACK | 519.0 MM | 528.4 MM | 547.2 MM | 570.0 MM | 588.9 MM | 607.8 MM | 626.8 MM |
| N | STEM LENGTH | 73.0 MM | 83.0 MM | 93.0 MM | 103.0 MM | 103.0 MM | 113.0 MM | 113.0 MM |
| Size | Body Height (CM) |
|---|---|
| XX-Small | 155-165 |
| X-Small | 165-170 |
| Small | 165-175 |
| Medium | 175-185 |
| Large | 180-190 |
| X-Large | 185-195 |
| XX-Large | >195 |
Specs
| Fork | Speedster Gravel Alloy Flatmount Disc, 1 1/4"-1 1/2" Eccentric Alloy steerer |
|---|---|
| Hubs | Formula Team II CL Disc 28 H |
| Rims | Syncros Race 24 Disc, 28 Front / 28 Rear |
| Stem | Syncros RR2.5 1 1/4" / four Bolt 31.8mm |
| Chain | KMC X8 |
| Frame | Speedster Gravel Disc / D.Butted 6061 Alloy, SCOTT Gravel geometry / Replaceable Derailleur Hanger, Internal cable routing, Syncros fender kit ready |
| Tires | Schwalbe G-One Bite Performance, 700x40C |
| Brakes | Tektro MD-C511 Mech. Disc |
| Rotors | Tektro TR-160-35 rotor 160/F and 160/R |
| Saddle | Syncros Tofino Regular 2.5 |
| Spokes | Black 2mm |
| Headset | Acros AIF-1133 |
| Crankset | Shimano Claris FC-RS200, 50x34 T |
| Seatpost | Syncros RR2.5 27.2/350mm |
| Shifters | Shimano Claris ST-R2000, Dual control 16 Speed |
| Handlebars | Syncros Creston 2.0 X, Alloy 31.8mm |
| Bottom Bracket | Shimano BB-UN300 |
| Rear Derailleur | Shimano Claris RD-R2000-GS, 16 Speed |
| Front Derailleur | Shimano Claris FD-R2000 |
| Cassette/Freewheel | Shimano CS-HG50, 8 Speed 11-32 T |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Dark Green / 47cm / 700c | 192820747651 | 290525047 | |
| Dark Green / 49cm / 700c | 192820747668 | 290525049 | |
| Dark Green / 52cm / 700c | 192820747675 | 290525052 | |
| Dark Green / 54cm / 700c | 192820747682 | 290525054 | |
| Dark Green / 56cm / 700c | 192820747699 | 290525056 | 210000030850 |
| Dark Green / 58cm / 700c | 192820747705 | 290525058 | 210000030851 |
| Dark Green / 61cm / 700c | 192820747712 | 290525061 |
